Rocla AGVs

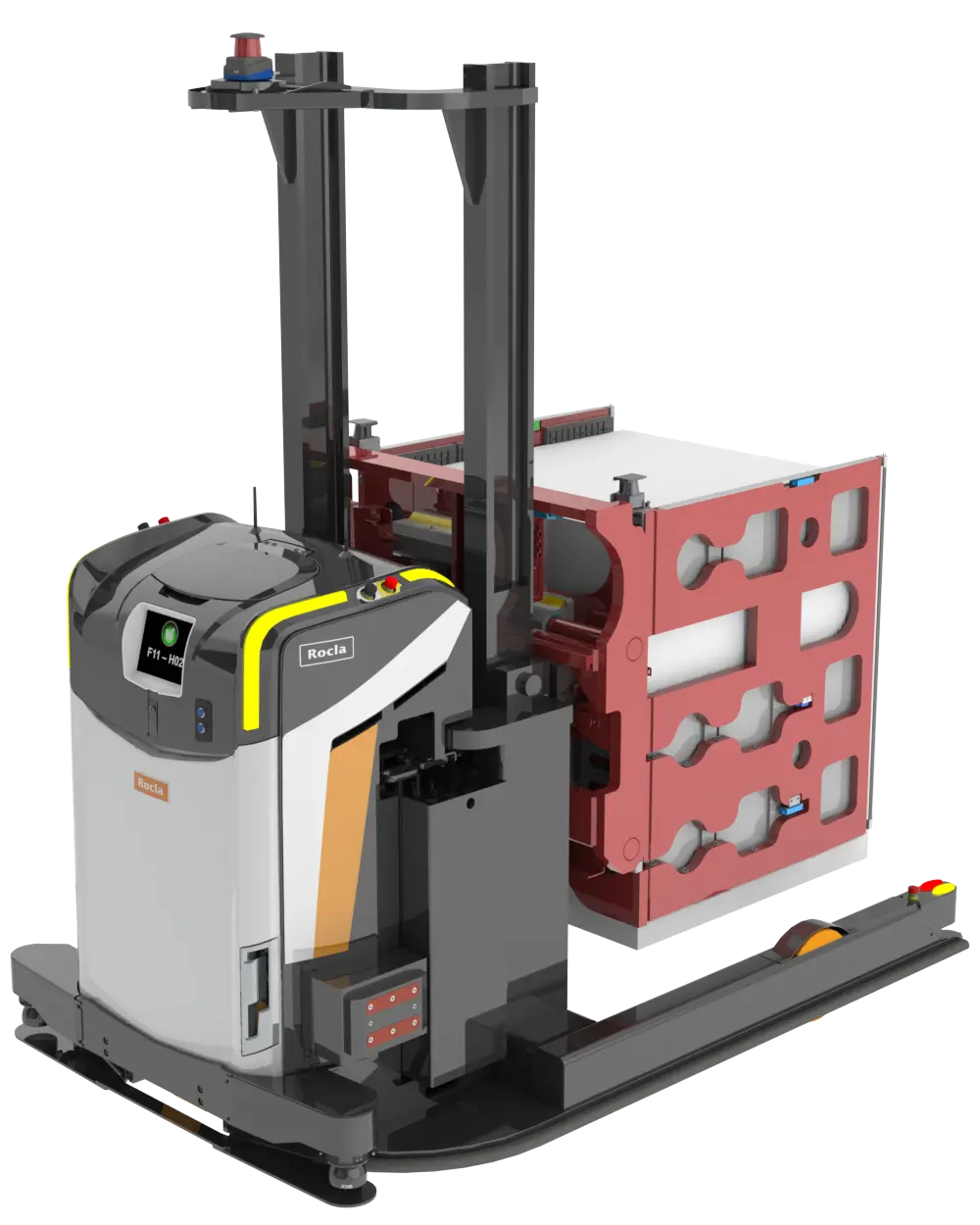

Bale Clamp AWT

This solution is ideal for automated transport and warehousing of pulp bales at pulp mills, distribution warehouses, and paper and board mills.Logisnext Europe has helped a number of customers solve logistics challenges by improving material flow in the paper, print, packaging, and tissue industries over the years. Here, vehicles such as the Bale Clamp AWT have been key. With our modular AGVs and cutting-edge software, we standardise, digitalise, and automate material handling, using the most rational option in each case. Our solutions offer a wide range of reliable and efficient applications in the paper industry, such as newsprint day storage and the commercial printing industry.With automation, you keep your goods moving, improve safety on the work floor, avoid damage to products, buildings or machinery, and ensure better product traceability. In particular, the Bale Clamp AWT offers transfers from a bale-wrapping line or a truck being unloaded to pulp storage. It can also operate pulp storage, transport material to de-wiring stations, prepare truck loading, as well as handle unpalletised square loads. It offers a lifting height of up to 7.25 m and a load capacity of up to 2,000 kg.The Bale Clamp AWT meets the ISO 3691-4 safety standard requirement. It has comprehensive safety features like 360° safety fields and side clearance monitoring. By signalling its status with lights and sound, this AGV makes the warehouse work safer and more efficient. Other available safety features allow AGVs, forklifts and people to work together in shared spaces.

• Transfer from a bale-wrapping line or truck unloading to pulp storage
• Operation of pulp storage
• Transport to the de-wiring stations
• Preparation of truck loading
• Lifting height: 7.25 m
• Loads of up to 2,000 kg

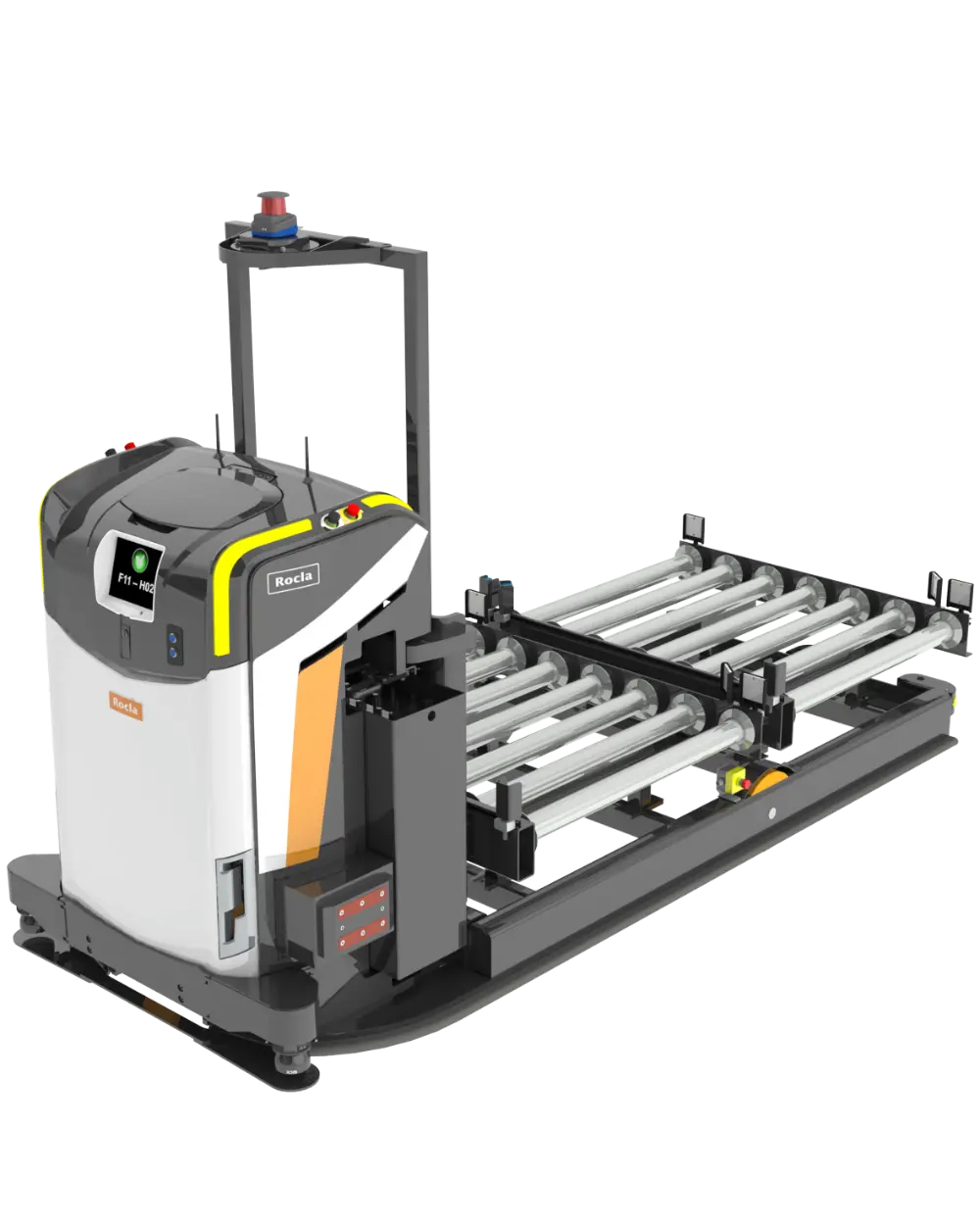

Conveyor AWT

The Rocla Conveyor AWT AGV is excellent for expanding the functionality of conveyor systems. It operates as an unfixed conveyor that can serve several fixed conveyors and keeps materials flowing. This keeps areas open for forklift and human traffic. The AGV system also leaves the floor space open for easy cleaning and maintenance.Being unfixed allows a flexible application where needed. A fleet of AGVs provides redundancy, making the overall system more resilient to failures. While a conveyor system failure usually suspends all material movement in the process, with the AGV system, the material keeps moving even if one vehicle is non-operational. The AGV system also leaves the floor space open for easy cleaning and maintenance.This Rocla AGV is flexible, with a variable transfer height as well as the vertical conveyor functionality available as options.The Conveyor AWT meets the ISO 3691-4 safety standard requirement. It has comprehensive safety features like 360° safety fields and side clearance monitoring. By signalling its status with lights and sound, this AGV makes the warehouse work safer and more efficient. Other available safety features allow AGVs, forklifts and people to work together in shared spaces.

• Expands the functionality of conveyor systems
• Operates as an unfixed conveyor
• Can serve several fixed conveyors
• Variable transfer height as an option
• Load capacity: 2 x 2,500 kg
• Keeps operating area open for both human and forklift traffic
• Transfer height of up to 950 mm

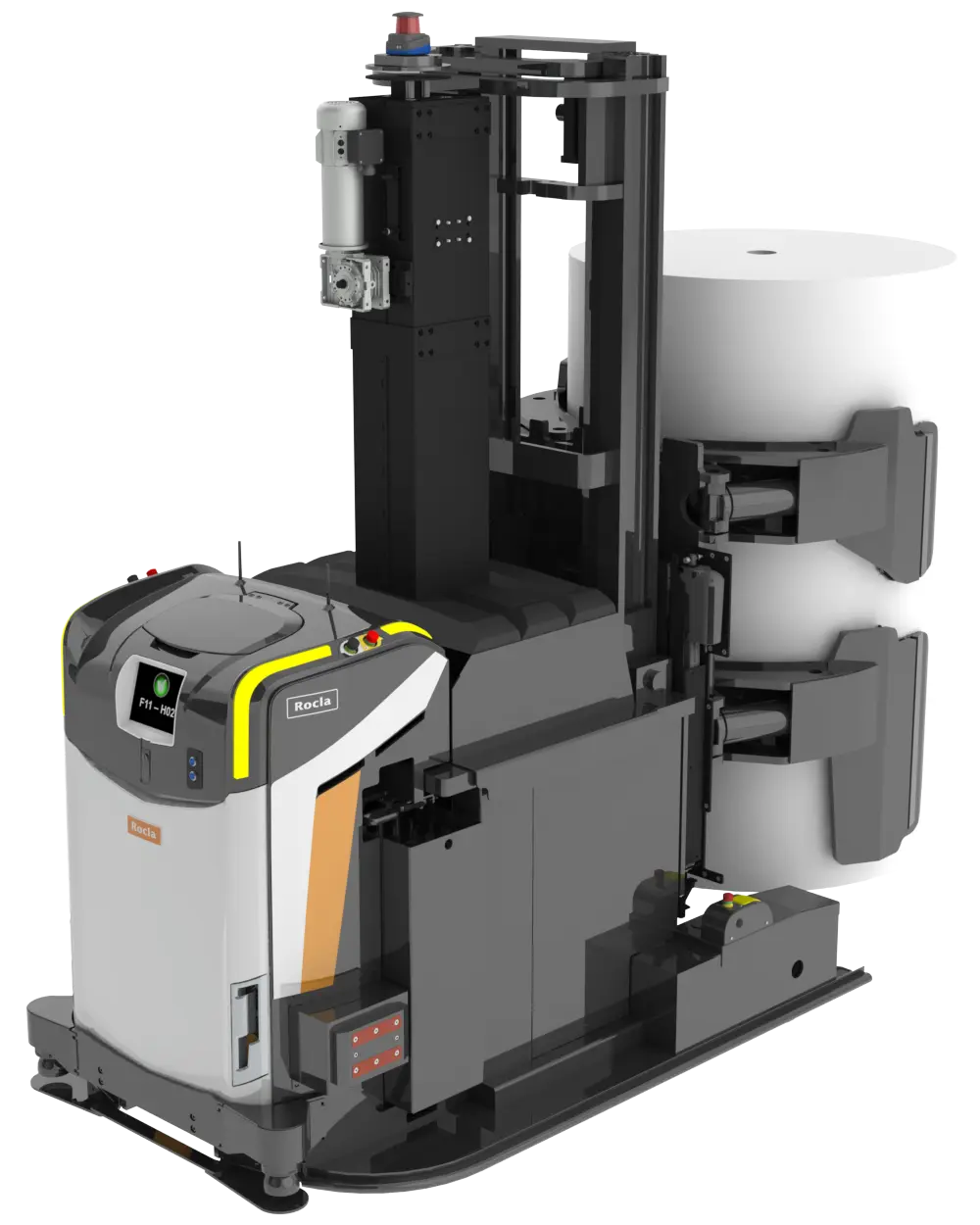

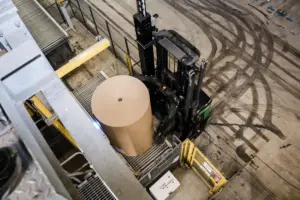

Roll Clamp AWT

The Roll Clamp AWT is ideal for efficient and reliable roll handling in the paper industry. In addition, suits well the packaging and printing industries, as well as those performing tissue and plastic roll handling. The Roll Clamp AWT features rotating clamps that enable flexible, reliable material handling as your applications require.This Rocla AGV is specifically designed for reel handling applications and is an ideal system for vertical and horizontal reel transport in printing houses, paper mills, converting, and more. It is a versatile solution for variable roll diameters and widths. The clamps can handle loads up to 6,000 kg, and the modular design enables combining tried-and-tested components with automation.The Roll Clamp AWT meets the ISO 3691-4 safety standard requirement. It has comprehensive safety features like 360° safety fields and side clearance monitoring. By signalling its status with lights and sound, this AGV makes the warehouse work safer and more efficient. Other available safety features allow AGVs, forklifts and people to work together in shared spaces.

• Up to 6,000 kg loads
• Variable roll diameters and widths
• Lifting capacity: 7.25 m
• Clamp with rotating and tilting features available as an option

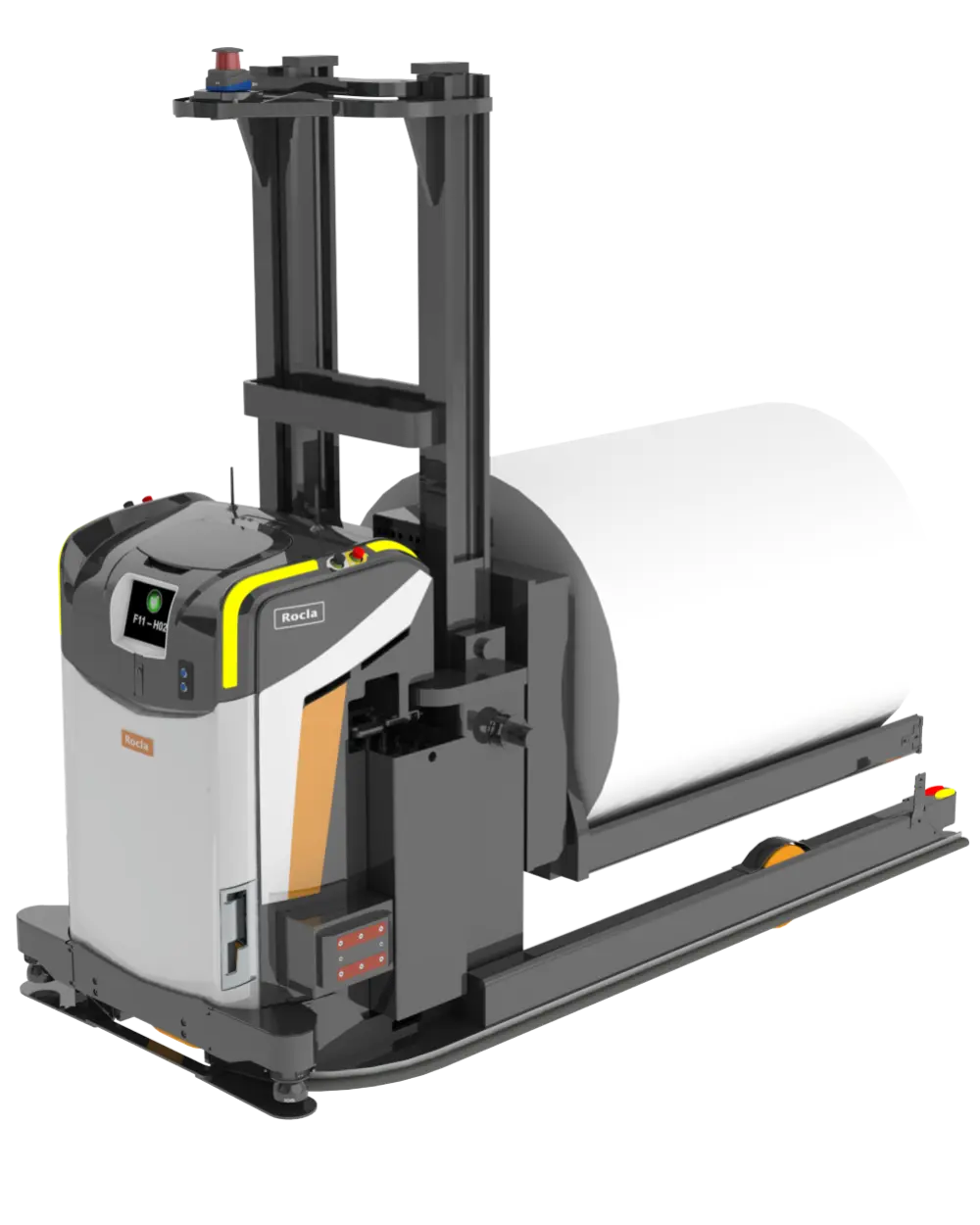

Reel Fork AWT

For efficient, reliable reel handling, we offer the Reel Fork AWT as a solution for the paper, packaging, and printing industries, as well as for tissue and plastic reel handling.This Rocla AGV is specifically designed for reel handling applications. It is an ideal system for horizontal reel transport in printing houses, paper mills, converting, and more. It is a versatile solution, with variable reel diameters and widths. The forks can be either fixed or adjustable, and can handle loads of up to 8,000 kg. The modular design enables the combination of tried-and-tested components with automation. The Reel Fork AWT is available as a solution for light, medium, and heavy loads, with special models for your specific loads also available.The Reel Fork AWT meets the ISO 3691-4 safety standard requirement. It has comprehensive safety features like 360° safety fields and side clearance monitoring. By signalling its status with lights and sound, this AGV makes the warehouse work safer and more efficient. Other available safety features allow AGVs, forklifts and people to work together in shared spaces.

• Designed specifically for reel handling
• Ideal for horizontal reel transport
• Variable reel diameters and widths
• Fixed or adjustable forks
• Loads of up to 6,000 kg
• Modular design
• Light-, medium-, or heavy-load solutions
• Special models for customer-specific loads

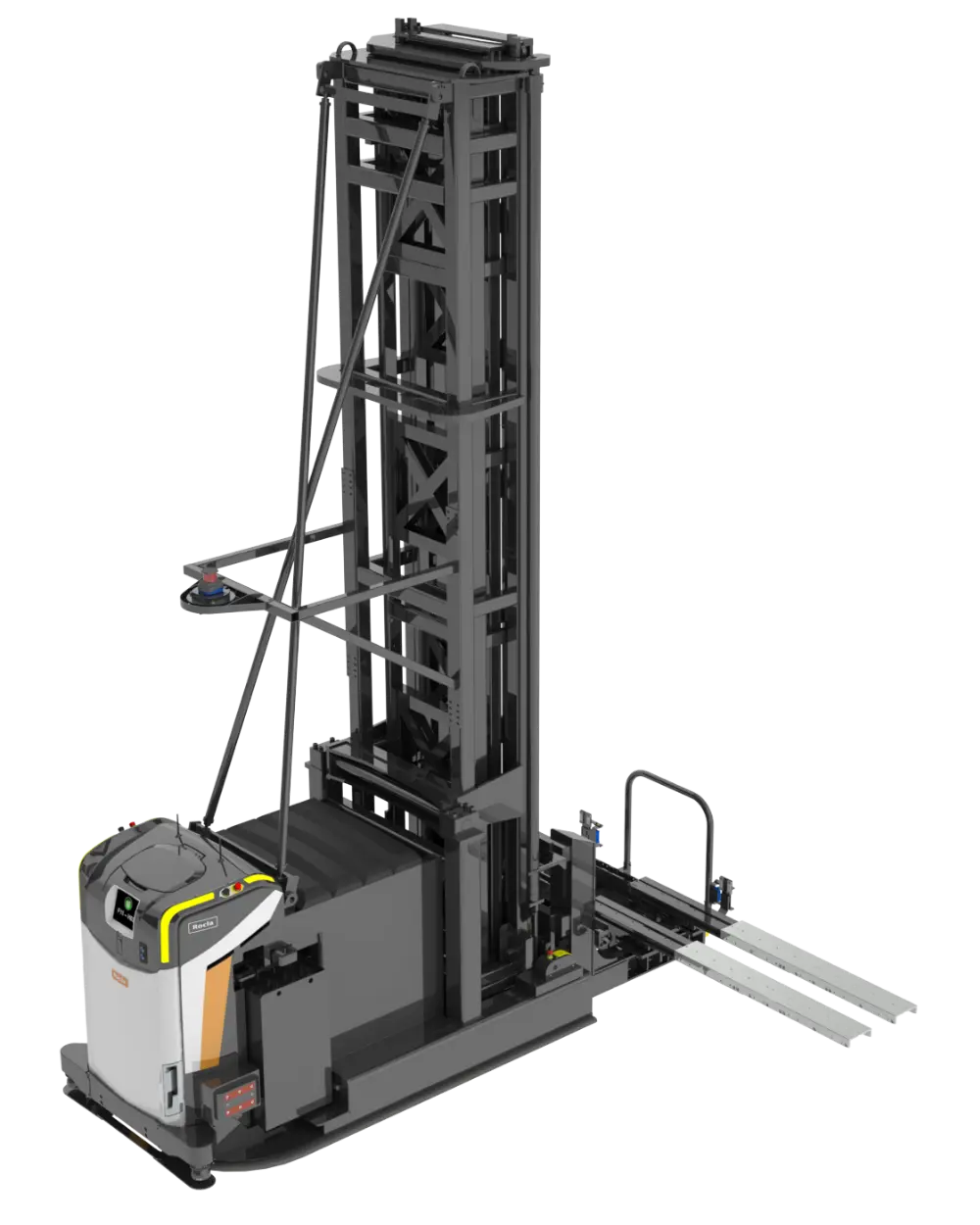

Very Narrow Aisle AWT

The Very Narrow Aisle Automated Warehouse Truck (VNA AWT) is an ideal solution for large warehousing operations where optimising storage space is crucial.In line with the rest of our offering, Rocla VNA is equipped with several safety features compliant with the ISO 3691-4 safety standard, including safety scanners and a dynamic stability control system. Safety is further enhanced with fluency-boosting accessories like the Proximity Detection System (PDS), which improves the interaction between AGVs, lift trucks, and people in a shared warehouse environment.It is intended for pallet handling and storage applications in pallet racking with very narrow aisles. The vehicle is specially designed for good performance in high-lifting environments, as it can operate in aisles as narrow as 1.6 m, handle loads up to 1200 kg, and has a lifting capacity of up to 12.75 m. The innovative, cutting-edge software and sensor technology significantly increase load handling speed.This Rocla AGV is equipped with telescopic load handling forks or a turret head for trilateral turning (-90 °…0 °…+90 °) of load forks for more versatile pallet handling.The Very Narrow Aisle AWT is suitable for various applications, including distribution centres, warehouses, work-in-progress storage, or replenishment of active picking locations, and it excels in scenarios requiring high storage capacity per square metre.

• Suitable for very narrow aisles
• Lifting capacity: up to 12.75 m
• Telescopic load handling forks as standard
• Versatile pallet handling
• Modular structure
• Suitable for high storage capacity facilities

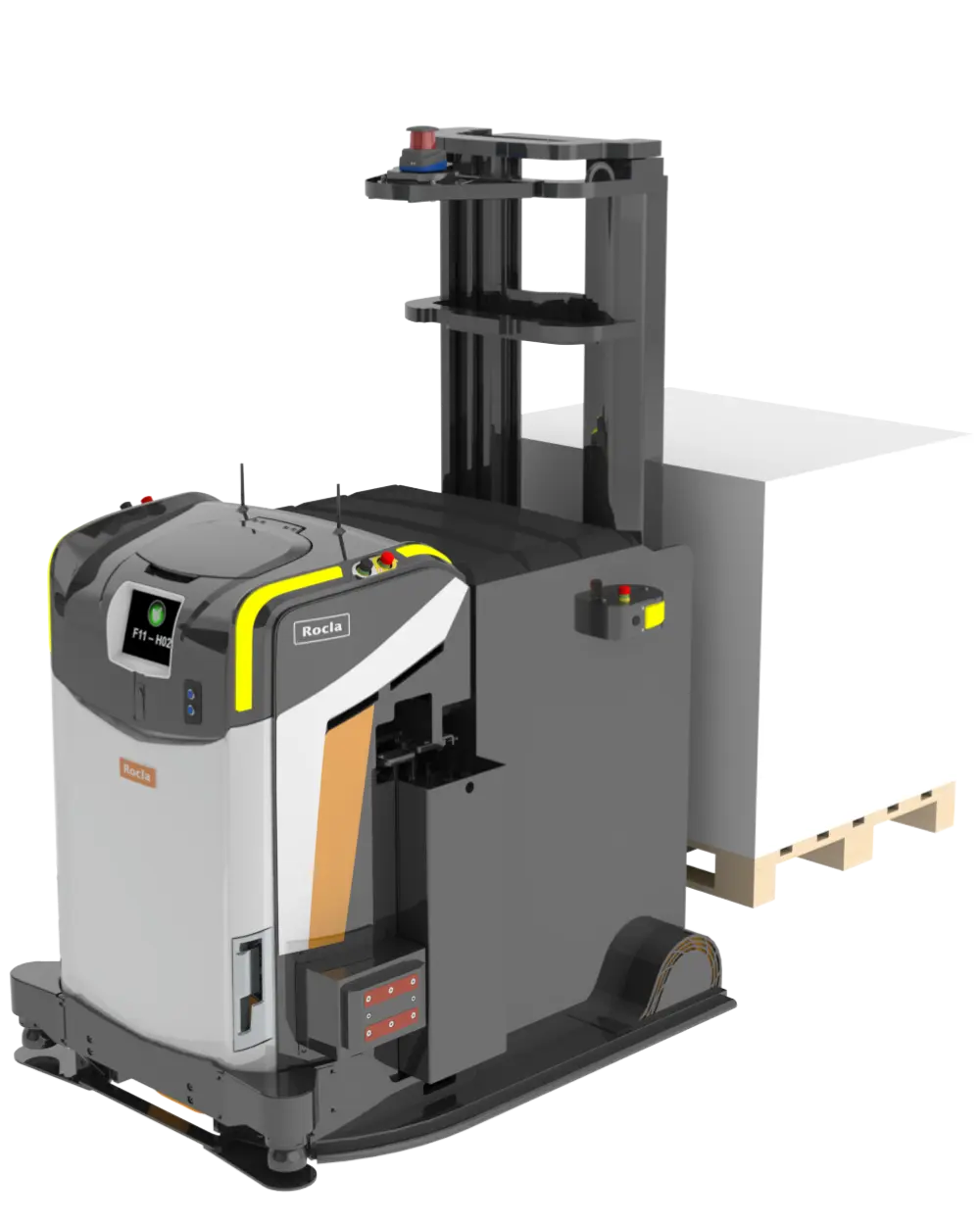

Counterbalance AWT

The Counterbalance Automated Warehouse Truck is perfect when your facility needs to use storage floor space optimally, or when your pallet transportation or warehouse calls for push-back and drive-in racks. It is a suitable AGV in a wide range of applications, given its lifting height of up to 8.4 m and permitted loads of up to 2,500 kg. This vehicle is compatible with drive-in racks and suitable for push-back racks. It is also an ideal solution for gravity-flow racks. Due to its structure, the Counterbalance AWT is optimal in applications where support legs, otherwise known as straddle options, cannot be used.The Counterbalance AWT meets the ISO 3691-4 safety standard requirement. It has comprehensive safety features like 360° safety fields and side clearance monitoring. By signalling its status with lights and sound, this AGV makes the warehouse work safer and more efficient. Other available safety features allow AGVs, forklifts and people work together in shared spaces.

• Ideal for applications where support legs (straddle options) cannot be used
• Loads of up to 2,500 kg
• Compatibility with drive-in racks
• Lifting capacity: 8.4 m
• An ideal solution for gravity-flow racks
• Suitability for push-back racks

Automated Reach Truck (ART)

The Automated Reach Truck (ART) is a multipurpose solution designed to lift up to 1600 kg in aisles with free space as narrow as 2.85 m and well-suited to large warehousing operations.With several models available, we can offer solutions tailored to customer needs. New and innovative software and sensor technologies considerably increase load-handling speed, and the 10 m lifting capacity and agile turning radius aim to fulfil the requirements of the most common warehouses and make ART a great companion for other workers and vehicles in the facility.Designed to meet the ISO 3691-4 safety standard requirements and in line with the rest of our offering, ART features several safety features, including safety scanners and residual load monitoring. Safety is complemented by fluency-enhancing accessories, such as the Proximity Detection System (PDS), which improves the coexistence of AGVs, lift trucks, and people in a shared warehouse environment.The unique safety installation creates a dynamic field in the moving direction, which allows the vehicle to turn faster. The residual load monitoring constantly monitors speed, load weight, height, and reach position.During load handling, collision detection ensures the operation is performed efficiently.ART is the winner of the Red Dot Design Award 2025.

• Fast and reliable load handling
• Agile turning radius
• Safe operations with advanced safety scanner setup
• Lifting capacity: 10 m
• Can operate in 2.85 m-wide aisles
• Precise load handling

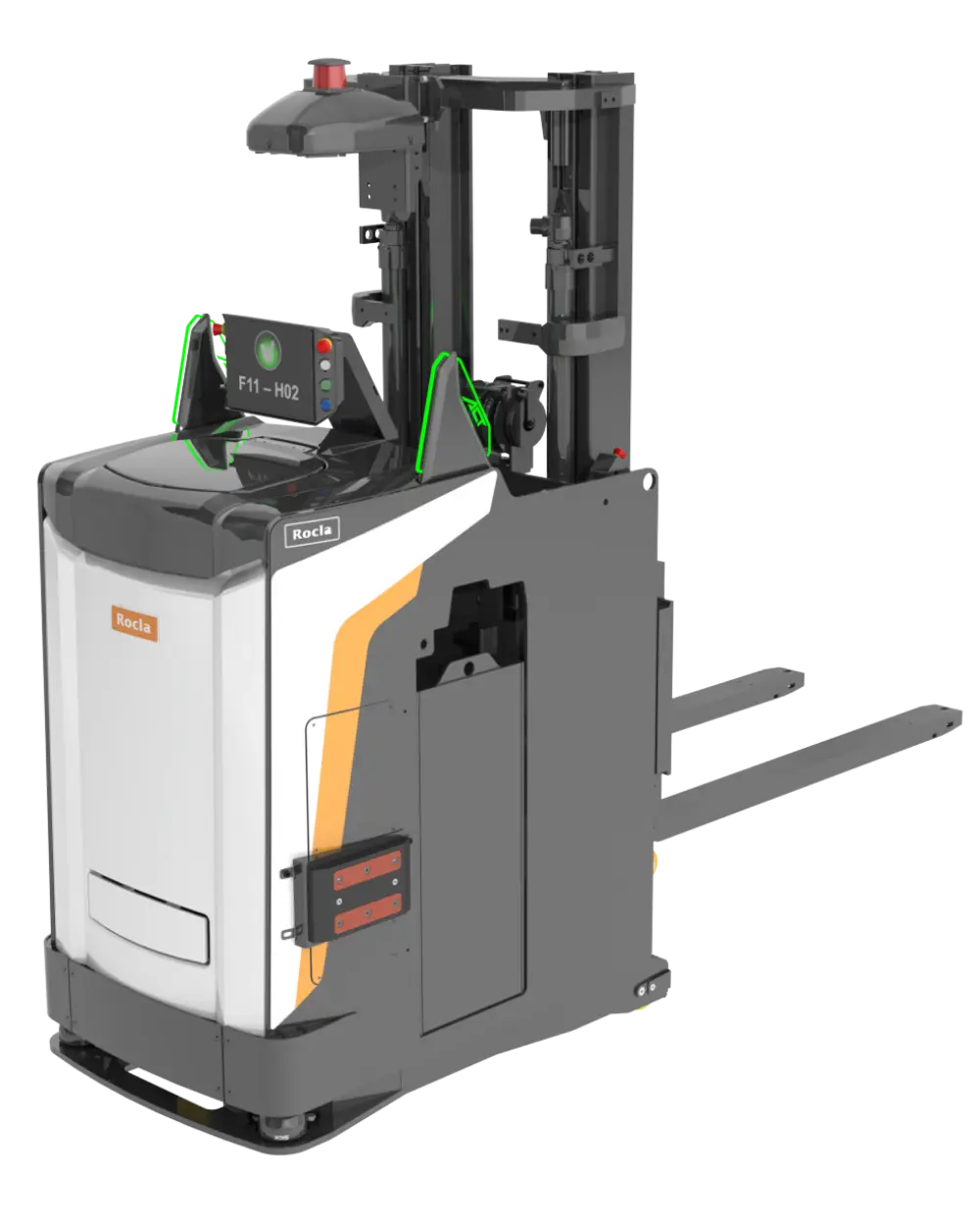

Automated Compact Truck (ACT)

The Automated Compact Truck (ACT) is ideal for heavy-duty lifting in narrow spaces. With a strong hydraulic unit, ACT can lift heavy loads up to 6 m in aisles as narrow as 2.6 m. ACT is developed with optimal automation in mind. This means harmonious interaction between AGVs and manual operations, with all systems seamlessly communicating and sharing tasks.The vehicle's touchscreen is highly responsive, with fast haptics and excellent visibility from different angles. With instructive colour-coded information, the information is conveyed quickly and clearly. LED fins on both sides of the vehicle serve as turn signals and indicate the state of ACT from a distance, improving communication with warehouse personnel.ACT meets the ISO 3691-4 safety standard requirement. It has comprehensive safety features like 360° safety fields and side clearance monitoring. By signalling its status with lights and sound, ACT makes the warehouse work safer and more efficient. Proximity detection allows AGVs, forklifts and people with tags to detect each other without a direct line of sight, slowing the vehicle down and stopping if necessary.ACT is the winner of the iF Design Award 2024, the Red Dot Design Award 2024 and the Automation Product Innovation of the Year Archie's Award 2024.

• Available as forkover and counterbalance
• Lifting up to 6 m
• Can operate in 2.6 m-wide aisles
• Fits in existing warehouse logistics
• Responsive user interface
• Designed to collaborate with manual operations

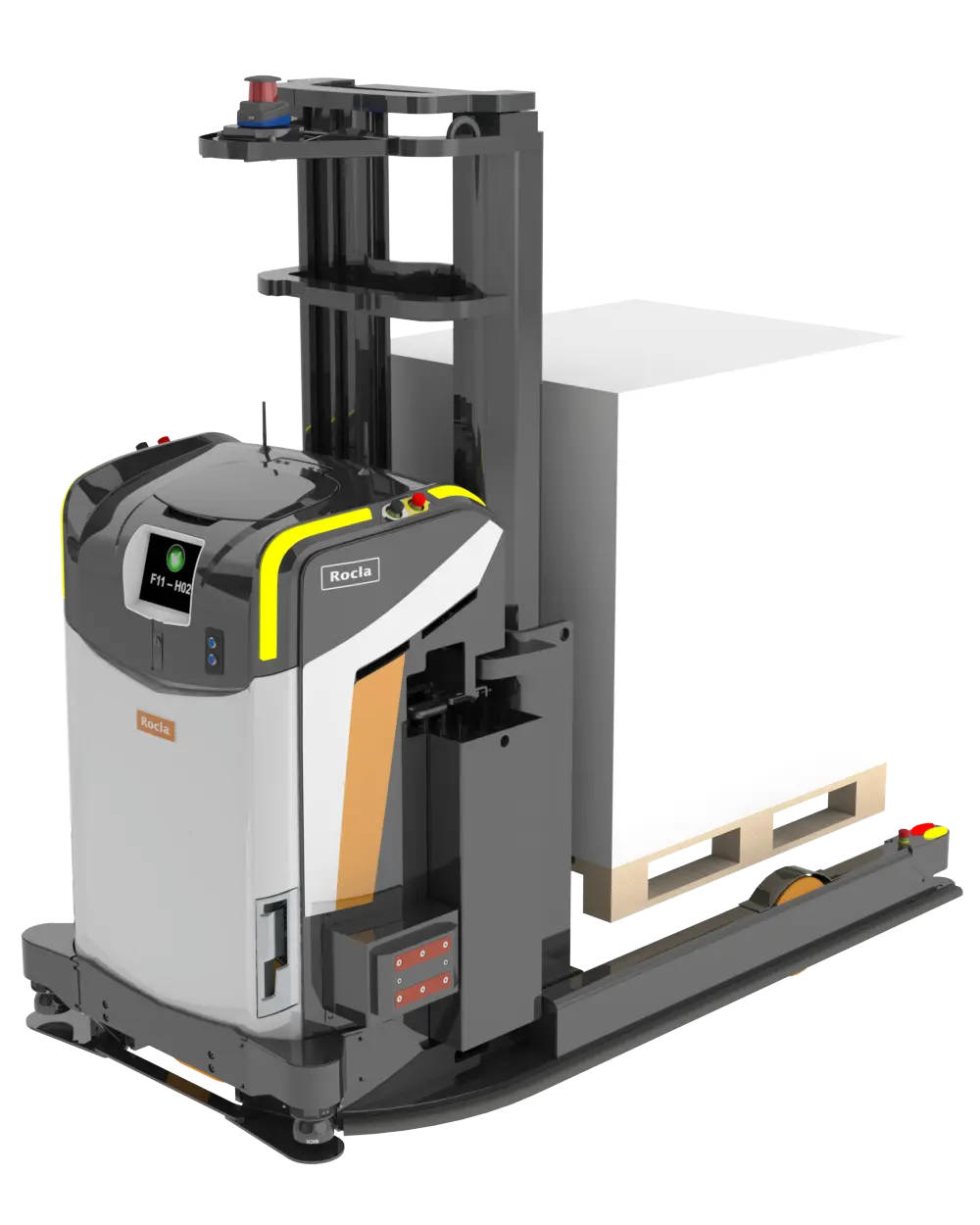

Straddle AWT

The Straddle AWT is a simple but very capable AGV. It's suitable for handling pallets and customer-specific loads in the distribution and manufacturing sector and in all industries that handle pallets and have related transportation needs.This Rocla AGV is capable of load-on-load operation and deep-stacking pallets with stable loads. Its high lifting capacity and support structure are well-suited for both conveyor handling and high lifting. It works well across different applications and offers an appealing price-to-performance ratio.The Straddle AWT meets the ISO 3691-4 safety standard requirement. It has comprehensive safety features like 360° safety fields and side clearance monitoring. By signalling its status with lights and sound, this AGV makes the warehouse work safer and more efficient. Other available safety features allow AGVs, forklifts and people to work together in shared spaces.

• Loads of up to 2,500 kg
• Pick-up from conveyors
• Lifting capacity: 8.6 m
• Ideal for manufacturing, tyre and food and beverage industry
